Accessory Switches for Suzuki Jimny (2018+)

£7.50 GBP
More stock is on the way!

loading..
Minus Plus
COMPATIBILITY
  • Suzuki Jimny (2018+) - JB64 - 3-Door, 4-Seater
  • Suzuki Jimny (2018+) - JB74 - 3-Door, 4-Seater
  • Suzuki Jimny (2021+) - JB74 - 3-Door, 2-Seater LCV
  • Suzuki Jimny (2023+) - JB74 - 5-Door, 4-Seater
DELIVERY INFORMATION

Tax information:

  • EU CUSTOMERS: EU VAT will be charged on this product at the checkout. There will be NO import duties or import taxes!
  • ALL OTHER CUSTOMERS: this product can only be shipped from our UK warehouse. Import duties and/or import tax might be payable when this shipment arrives.

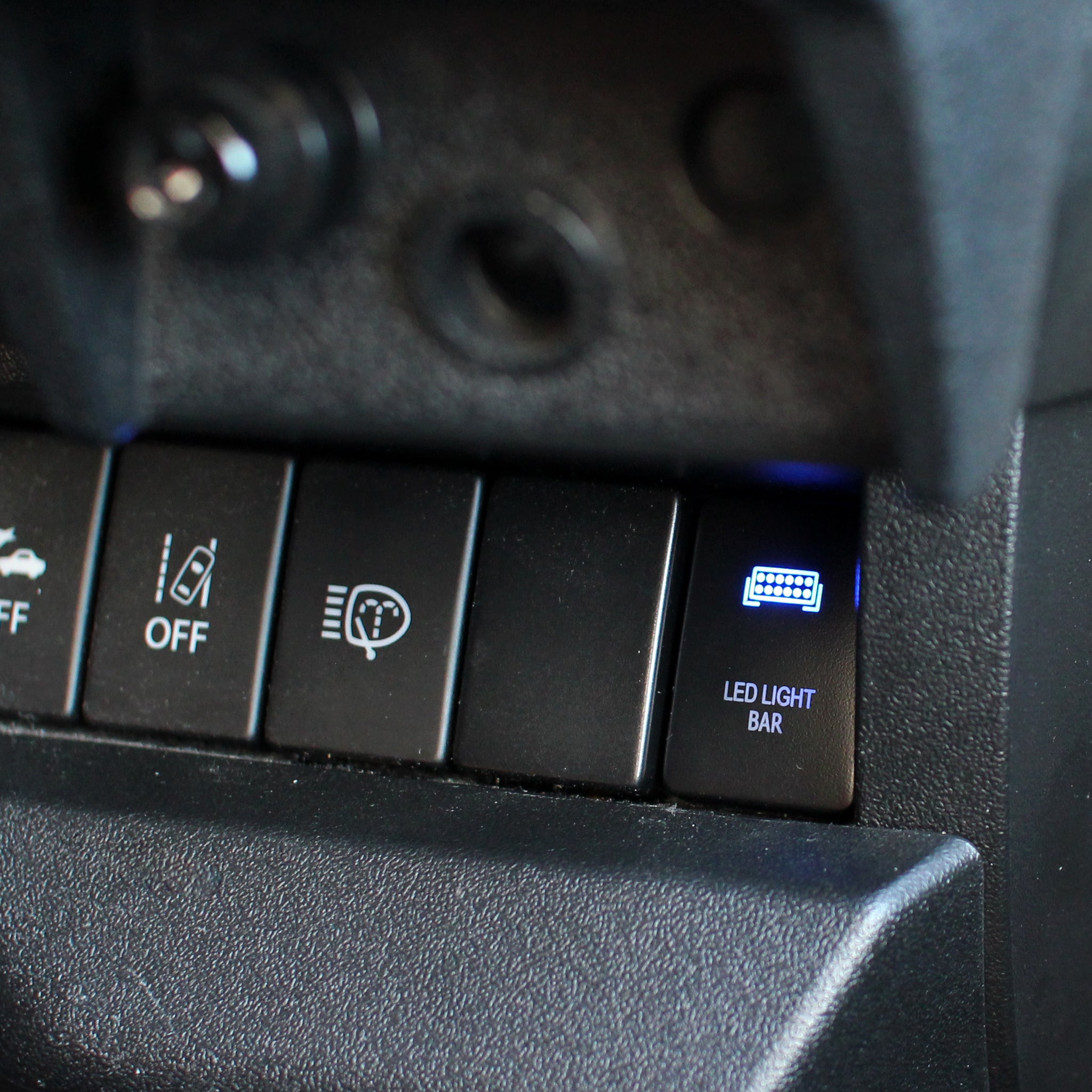

These switches fit perfectly into the switch panel located near to your key ignition barrel and underneath the electric mirror adjustment switch.

Usually, there are a few "blanks" installed in this switch panel. You can remove these blanks and replace them with switches to control your aftermarket accessories.

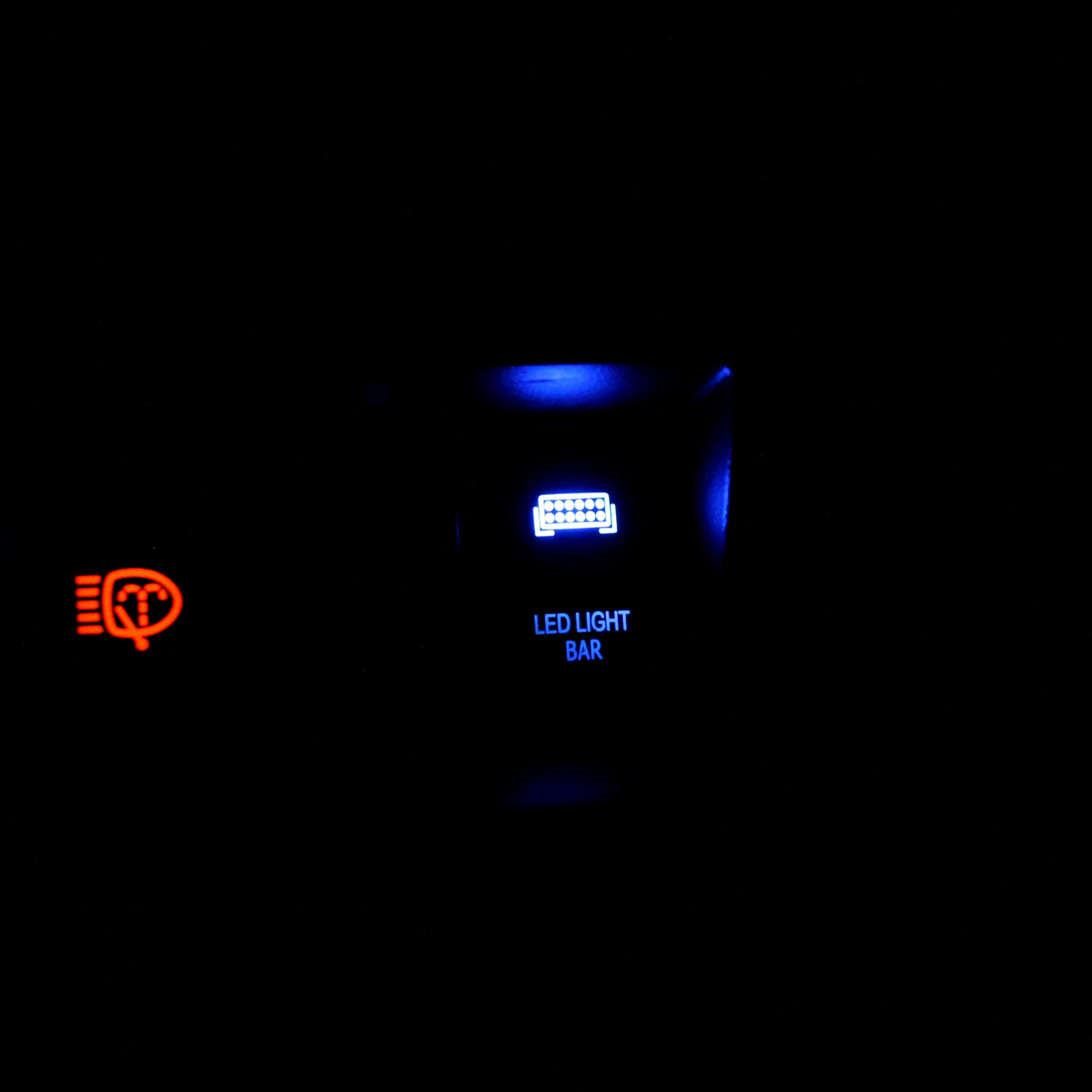

When connected correctly to your Jimny's "illumination" 12V circuit, the description at the bottom of the switch illuminates when the headlights are switched on, highlighting the function of the switch.

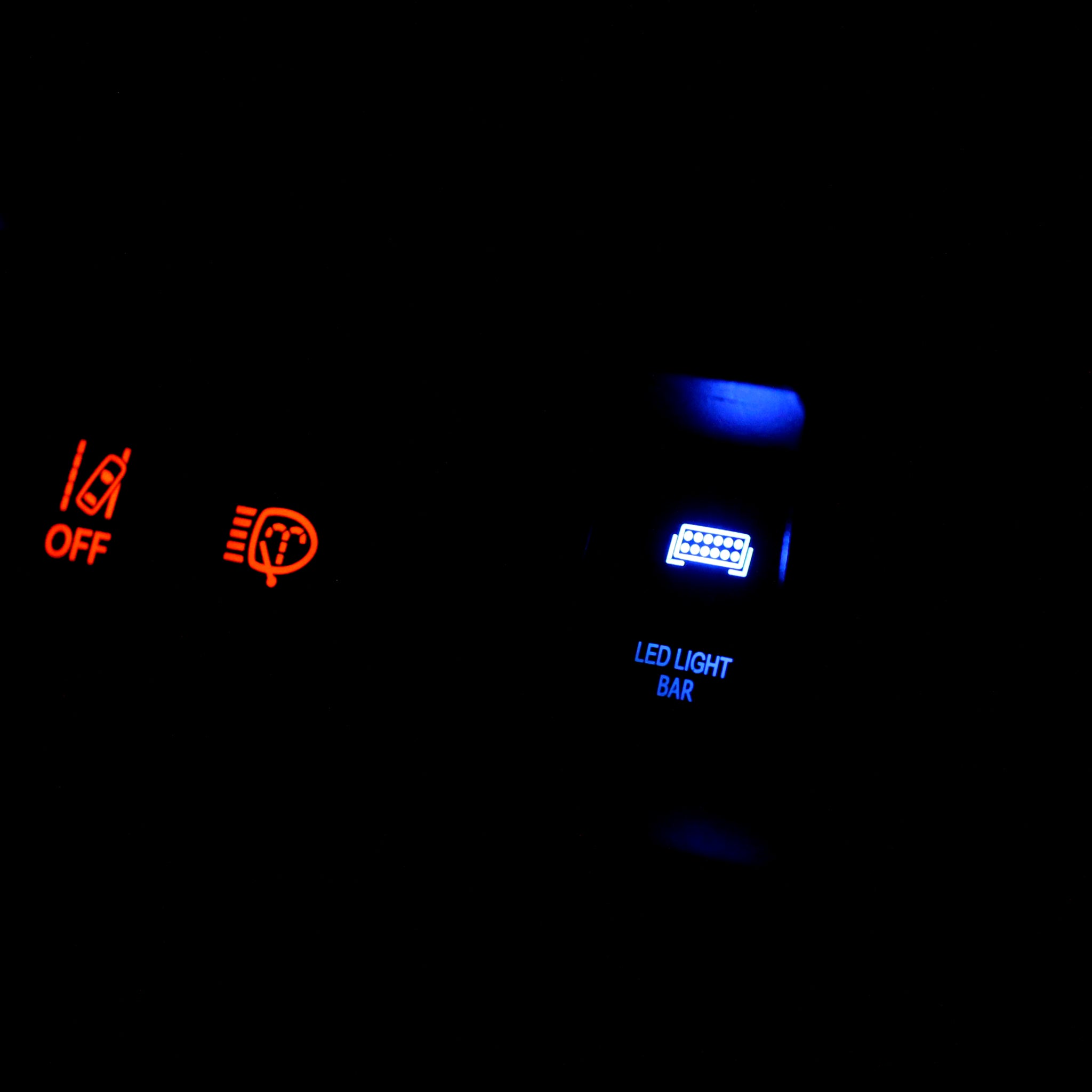

When the switch is pushed and activated, both the switch function and graphic illuminate to show that the switch has been turned on.

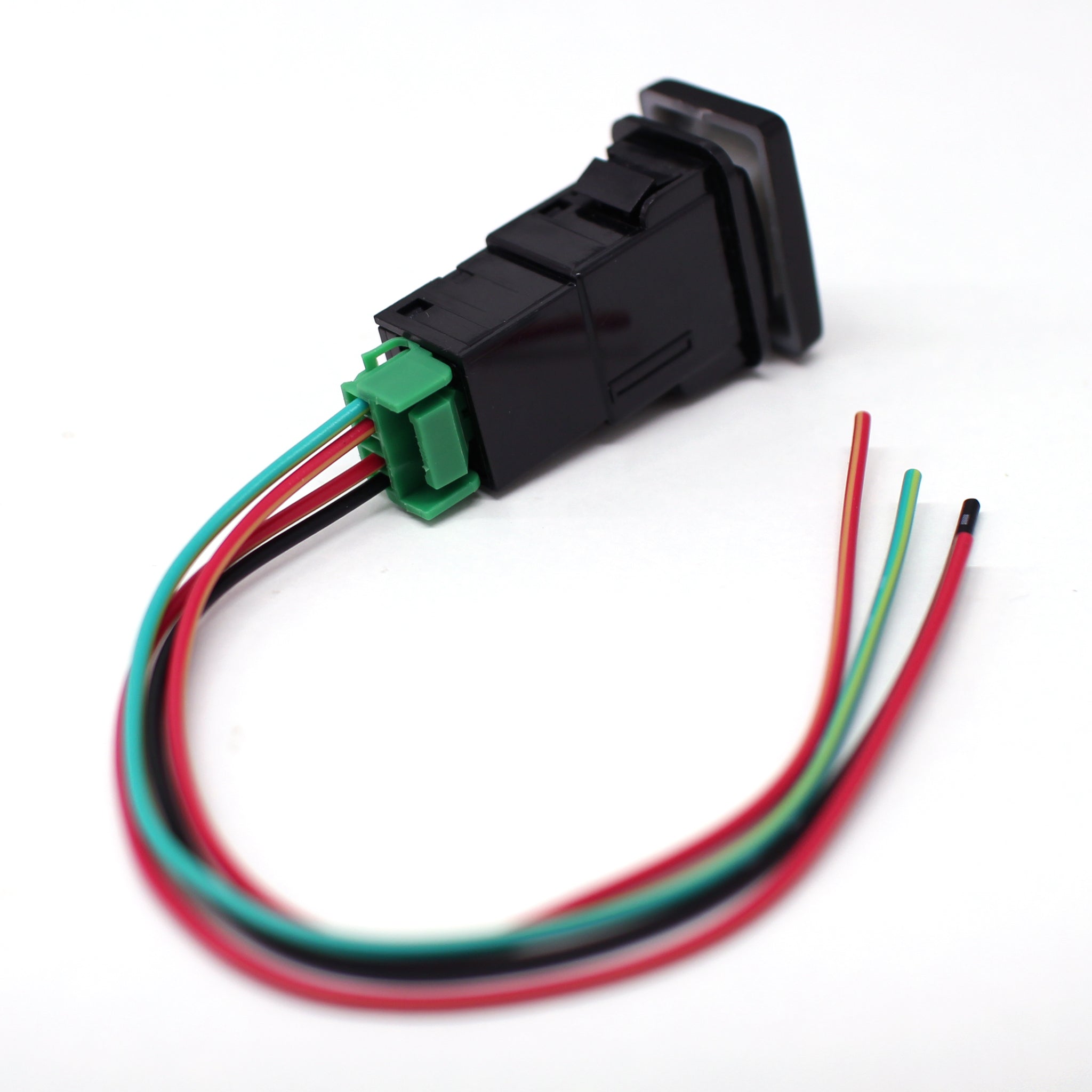

An electrical connector with wiring is included. Wiring colours are as follows:

Green/Yellow Stripe - permanent 12V live feed
Red/Yellow Stripe - electrical relay switch feed
Yellow/Red Stripe - 12V illumination feed
Black - earth

Technical Specification
Voltage: DC12V
Current Rating: 3A
Maximum Power: 36W

Please note: switches are supplied individually. Please select which switch graphic type you require when ordering
