JAOS BATTLEZ Complete Lift Kit for Suzuki Jimny JB74

  • £1,285.00
    Unit price per

Only 0 remaining in stock!

Custom order item
This product or specification is not currently in stock and will be ordered in when required. Once your order has been placed, we will contact you to advise of the ETA.


JAOS are a highly respected off-road tuning specialist in Japan, supplying high quality aftermarket products that range from suspension components to wheels and styling enhancements.

The JAOS BATTLEZ Complete Lift Kit contains all of the necessities to raise the ride height of your JB74 Suzuki Jimny, while still allowing for excellent driving and handling characteristics.

If your car is equipped with LED headlights, please select the optional Headlight Adjustment Bracket when ordering.

Ride Height Increase
Front: 35~40mm
Rear: 35~40mm

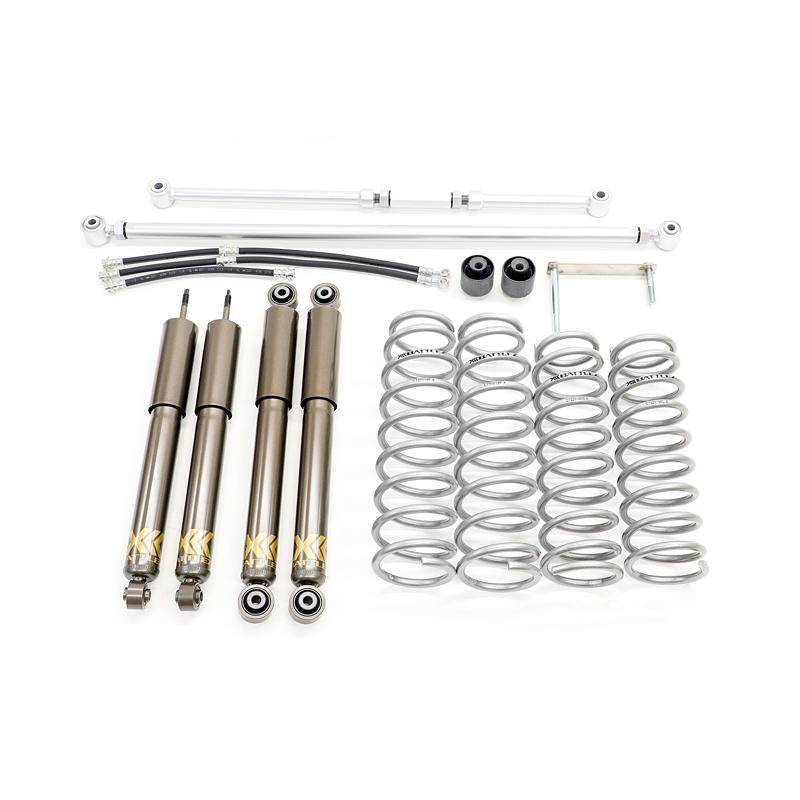

Kit Components
Front & rear coil springs
Front & rear shock absorbers
Extended brake hoses

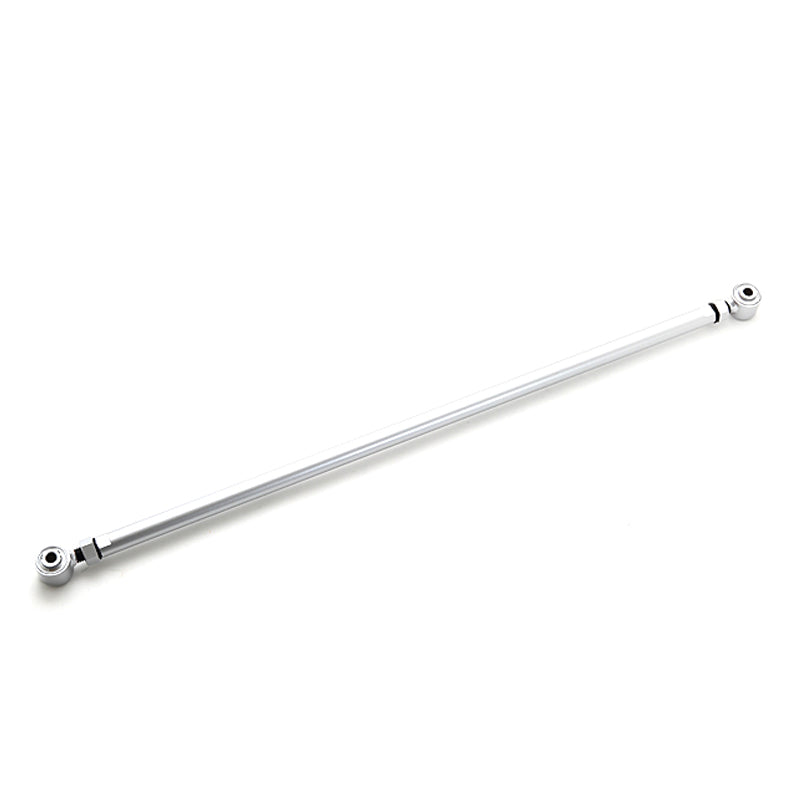

Front lateral rod
Rear lateral rod
Assist kit (caster bush, jig for bush positioning)

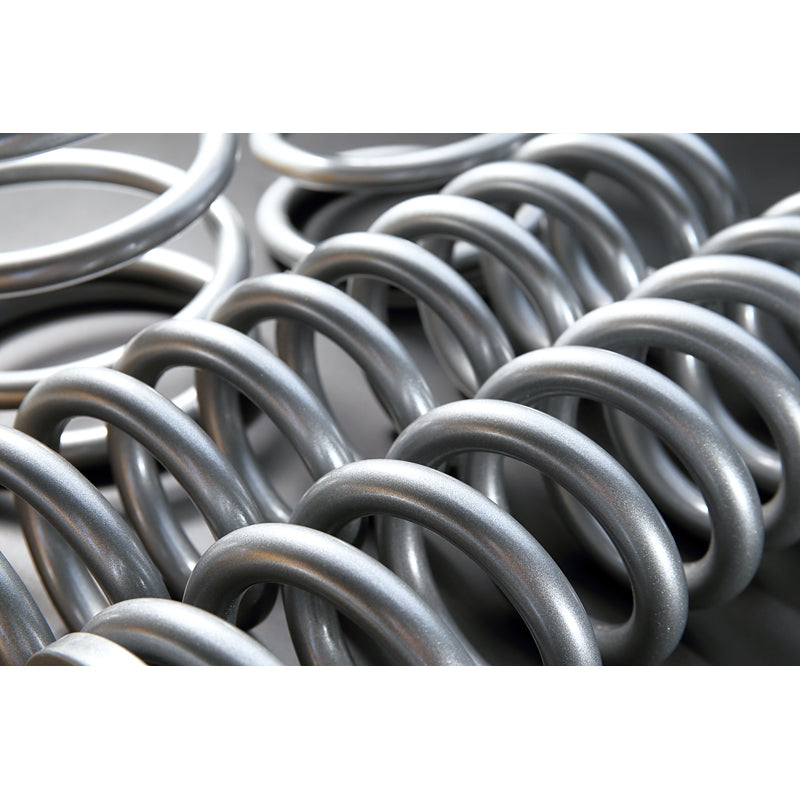

Spring Specification
Wire diameter: 11.5mm (front), 11.11mm (rear)
Spring rate: 20.6N/mm (front), 20.5N/mm (rear)

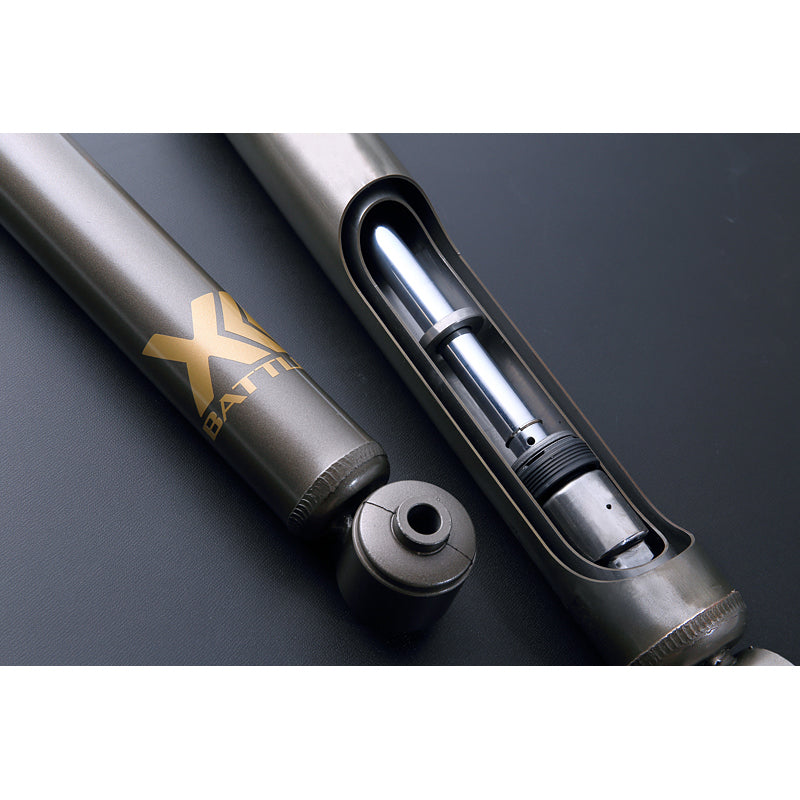

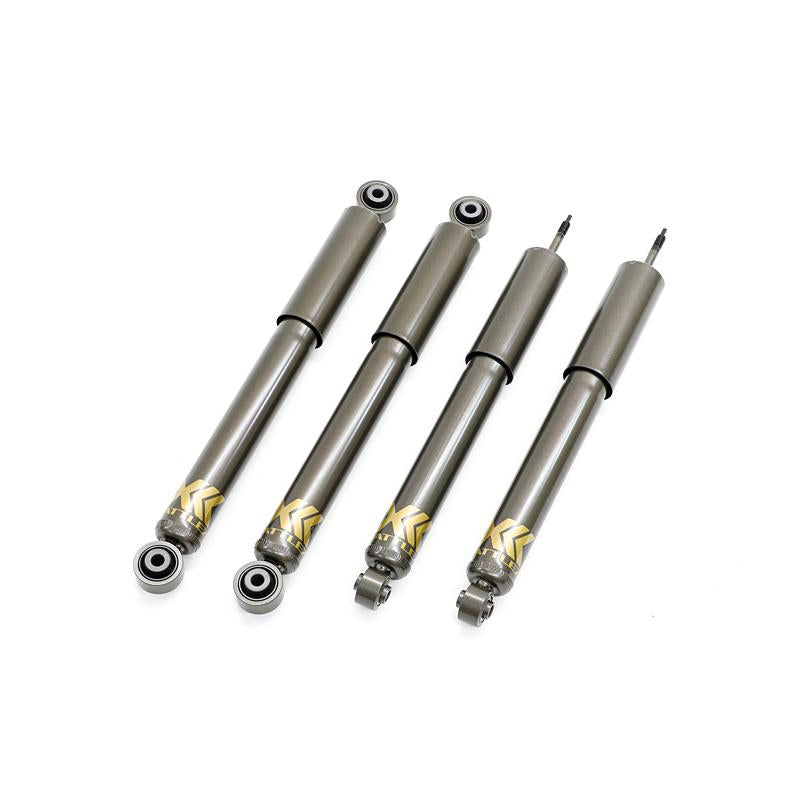

Shock Absorber Specification
Type: low pressure gas type, twin tube dampers
Damping force: fixed
Stroke: 21mm (front), 31mm (rear)
Diameter: 45mm (front & rear)
Piston diameter: 30mm (front & rear)
