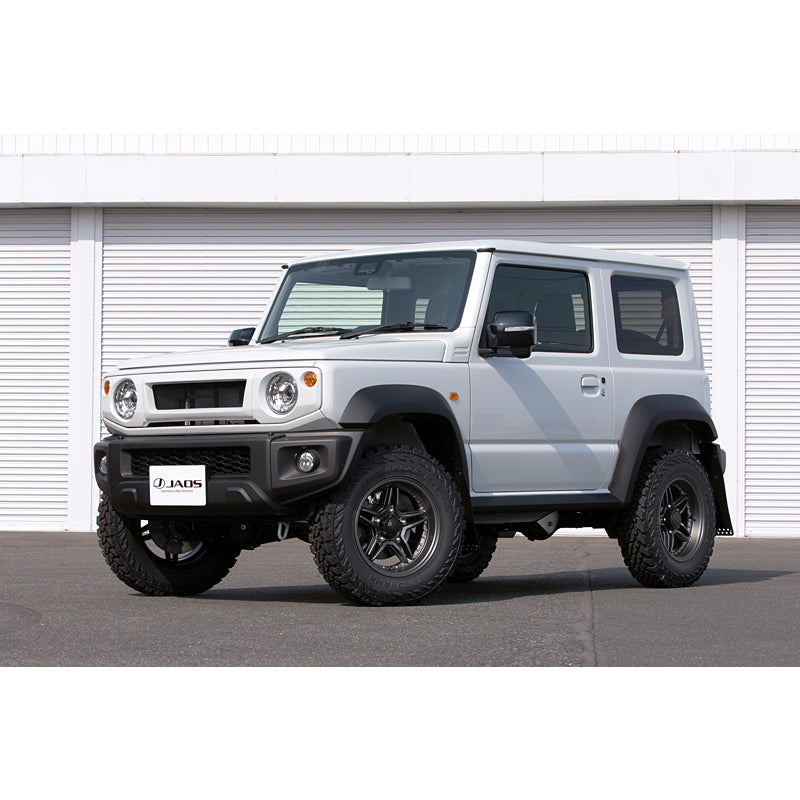

JAOS BATTLEZ Basic Lift Kit for Suzuki Jimny JB74
JAOS are a highly respected off-road tuning specialist in Japan, supplying high quality aftermarket products that range from suspension components to wheels and styling enhancements.

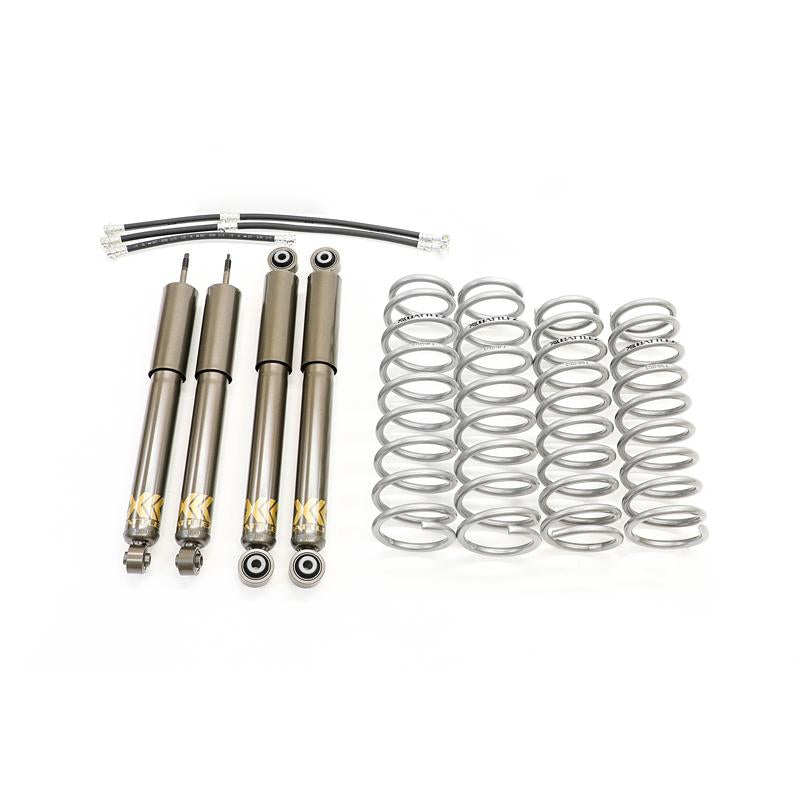

The JAOS BATTLEZ Basic Lift Kit comprises of the bare necessities to raise the ride height of your JB74 Suzuki Jimny.
If your car is equipped with LED headlights, please select the optional Headlight Adjustment Bracket when ordering.
Ride Height Increase

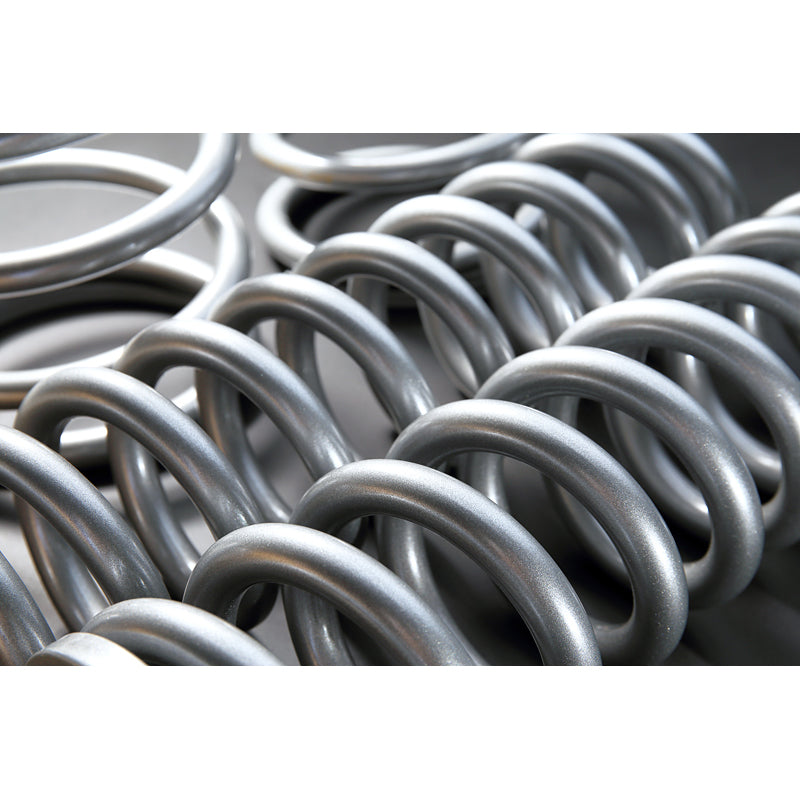

Front & rear coil springs

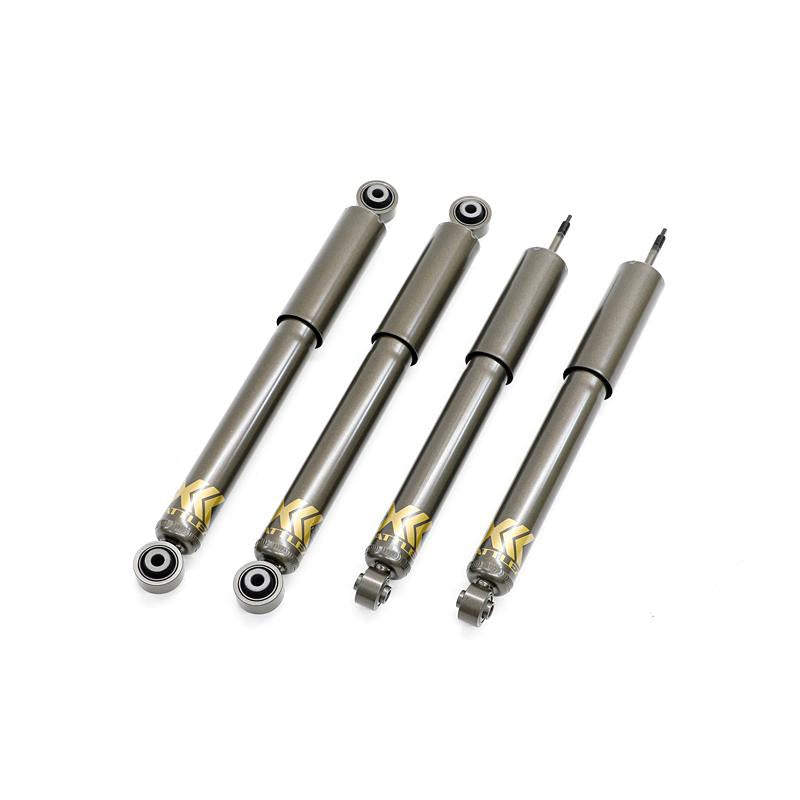

Front & rear shock absorbers
Extended brake hoses
Wire diameter: 11.5mm (front), 11.11mm (rear)
Spring rate: 20.6N/mm (front), 20.5N/mm (rear)

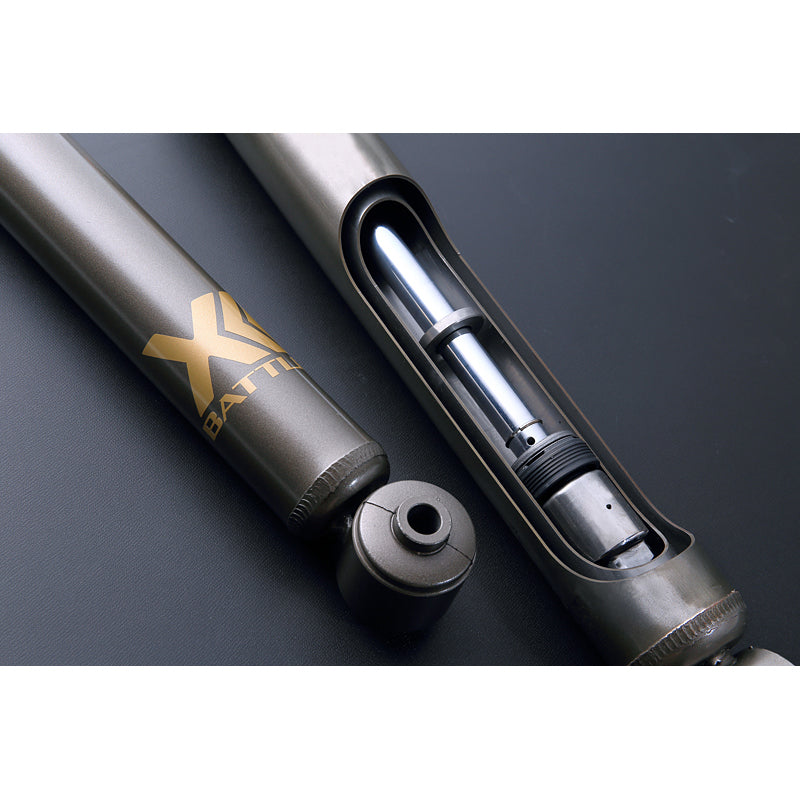

Shock Absorber Specification
Type: low pressure gas type, twin tube dampers
Damping force: fixed
Stroke: 21mm (front), 31mm (rear)
Diameter: 45mm (front & rear)
Piston diameter: 30mm (front & rear)
