HM4X4 Front Radius Arms for Suzuki Jimny (2018+)

  • £439.11
    Unit price per

Only 0 remaining in stock!
Will not ship until

Custom order item
This product or specification is not currently in stock and will be ordered in when required. Once your order has been placed, we will contact you to advise of the ETA.


HM4X4 is a highly respected Italian manufacturer of aftermarket components for off-road driving and racing.

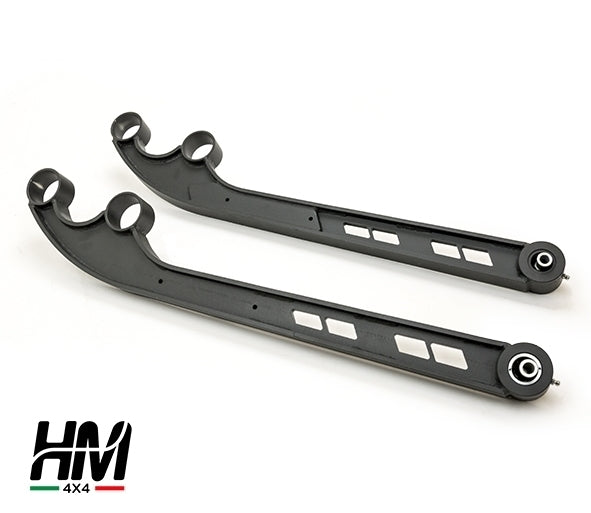

HM4X4 Front Radius Arms for Suzuki Jimny (2018+)

These radius arms are a direct replacement for the OEM items and are recommended for Jimnys with suspension lifts of 70~100mm.

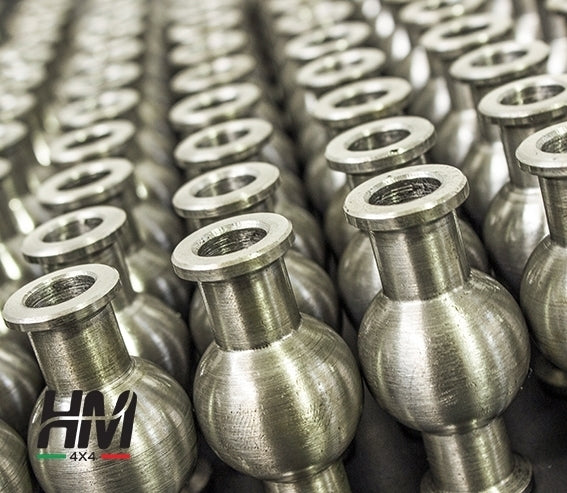

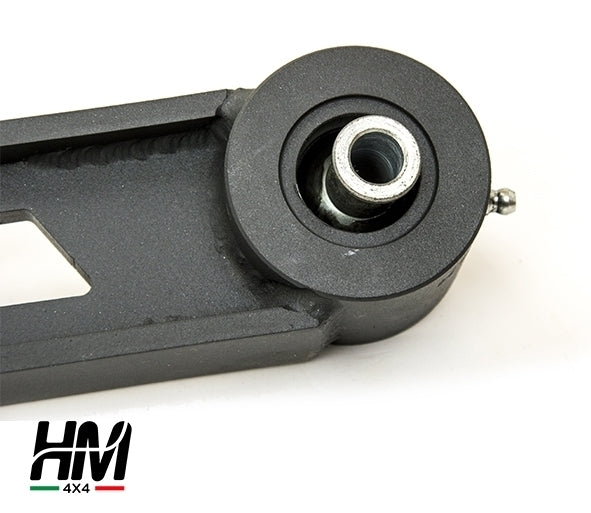

The radius arms are supplied with pre-installed "Jonny Joints" where they mount to the chassis. These allow maximum mobility with minimal resistance and yet they remain almost entirely wear-resistant.

The radius arms incorporate 5° or 10° of castor correction (depending on the specification that you select), bringing the castor back into specification after a suspension lift kit has been installed.

The radius arms also push the front axle forwards by 20mm, resulting in improved stability and a greater departure angle when off-roading.

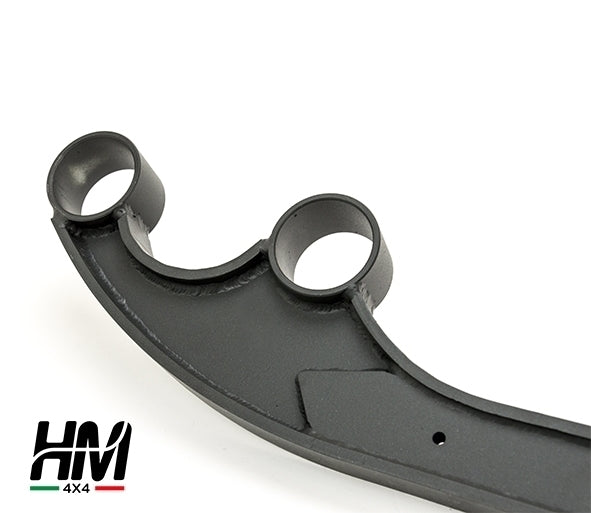

Manufactured from C45 steel, TIG welded, galvanised and epoxy coated.

For the attention of EU customers only: this product originates in the EU and therefore complies with the EU-UK Trade and Cooperation Agreement. This product will be exempt from tariffs or quotas when being sent to an EU member state shipping address.
